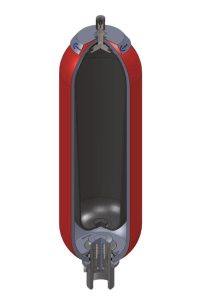

Bladder accumulators’ type ASL and AST consist of a seamless cylindrical pressure vessel made of high-tensile steel. The accumulators are subdivided into a gas and fluid side by an elastic bladder mounted in the interior of the vessel. In the ASL type, the liquid is also inside the bladder.
The transfer accumulator AST type is designed especially for connecting to nitrogen cylinders. A diffuser rod prevents damage to the bladder when the accumulator works.
Bladder Accumulators Liquid Separator type ASL and TRANSFER type AST
MAX OPERATING PRESSURE (PS): 360 bar
PRESSURE TEST (PT): 1.43 x PS
NOMINAL CAPACITIES:
ASL: 0.2 - 0.7 - 1 - 1.5 - 3 - 5 – 10 – 15 – 20 – 25 – 35 - 55 litres
AST: 1 - 1.5 - 3 - 5 – 10 – 15 – 20 – 25 – 35 - 55 litres
WORKING TEMPERATURE: -40 ÷ +150 °C
FLUID VISCOSITY RANGE: 10 ÷ 400 cSt
- dirt tolerant
- light weight
- compact
- simple construction
- quick response
- works well on water, low lubricity fluids
- quick, easy installation
- low cost
