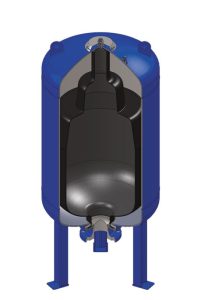

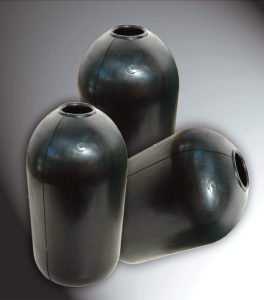

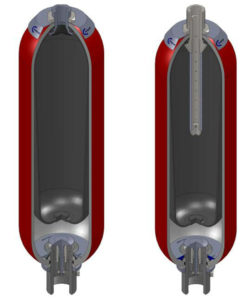

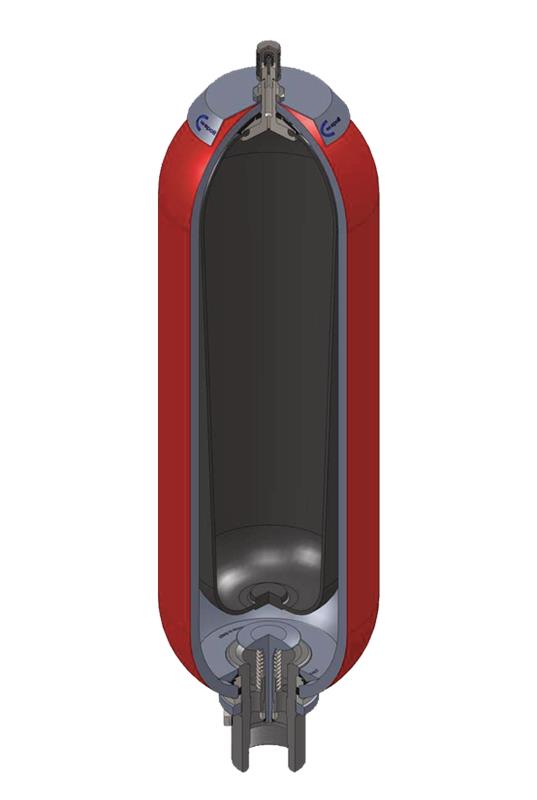

ASA Bladder-type accumulators consist of a seamless cylindrical pressure vessel made of high-tensile steel. The accumulator is subdivided into a gas and fluid side by an elastic bladder mounted in the interior of the vessel. The bladder is charged with nitrogen to the specified gas charge pressure P0 by means of gas valve.
MAX OPERATING PRESSURE (PS): 4000 PSI
PRESSURE TEST (PT): 1.3 x PS
NOMINAL CAPACITIES: 1/4 - 1 - 2.5 - 5 - 10 - 15 gallons
WORKING TEMPERATURE: -40 ÷ +200 °F (-40 ÷ +93 °C)
COMPRESSION RATIO (Po : P2): max. 1:4
FLUID VISCOSITY RANGE: 10 ÷ 400 cSt
