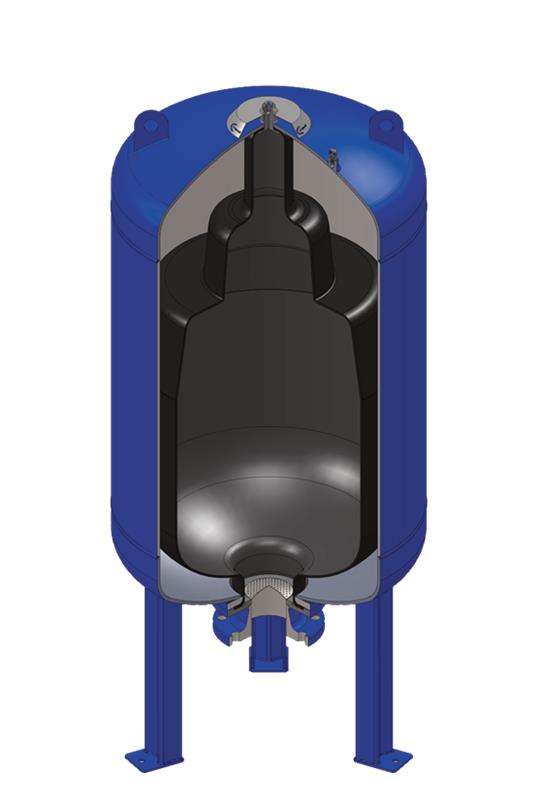

ASE Bladder-type accumulators consist of a cylindrical pressure vessel made of high-tensile steel. The accumulator is subdivided into a gas and fluid side by an elastic bladder mounted in the interior of the vessel. The nitrogen is charged to the specified gas charge pressure P0 by means of gas valve at the external of the bladder.
MAX OPERATING PRESSURE (PS): 4000 PSI
PRESSURE TEST (PT): 1.3 x PS
NOMINAL CAPACITIES: 1/4 - 1 - 2.5 - 5 - 10 - 15 gallons
WORKING TEMPERATURE: -40 ÷ +200 °F (-40 ÷ +93 °C)
COMPRESSION RATIO (Po : P2): max. 1 : 4
FLUID VISCOSITY RANGE: 10 ÷ 400 cSt
