A bladder accumulator is a hydro-pneumatic device that separates hydraulic fluid from compressed gas using a flexible bladder membrane, creating an efficient solution for energy storage and pressure regulation in hydraulic systems. These components perform multiple critical functions including storing energy during low-demand periods, dampening pulsations from pump operations, absorbing shocks from sudden pressure spikes, and compensating for volume changes caused by temperature fluctuations.
DURAfilter manufactures bladder accumulators in both low-pressure and high-pressure configurations suitable for diverse applications ranging from mobile equipment to heavy industrial machinery.
How Does a Bladder Accumulator Work?
A bladder accumulator operates through the interaction between compressed gas and hydraulic fluid, utilizing the principles of gas compressibility and fluid incompressibility to store energy. Inside a high-strength steel pressure vessel, a flexible bladder separates the gas, typically nitrogen and hydraulic fluid. The nitrogen is pre-charged to 90% of the system’s minimum pressure, creating a compressible reservoir. When the system pressure exceeds the pre-charge level, hydraulic fluid enters the accumulator shell, compressing the gas and storing energy. This allows for efficient energy storage without additional energy consumption.

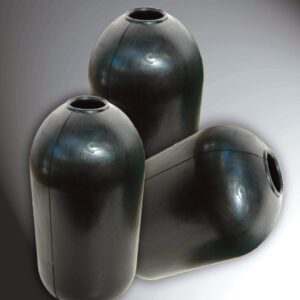

When system pressure drops, the compressed nitrogen expands, forcing the bladder to release the stored hydraulic fluid back into the system, maintaining pressure and flow. The bladder’s synthetic rubber construction ensures flexibility and durability, while alloy steel fluid ports and a gas valve allow easy maintenance and pressure adjustments. Proper pre-charge pressure is critical, as it directly influences efficiency, response time, and service life of the accumulator.
Key Features and Benefits of Bladder Accumulators
Our hydraulic bladder type accumulators deliver specific benefits that make them preferred choices for applications demanding quick response and reliable operation. Below are some of the key advantages:
- Millisecond Response Time: The lightweight bladder reacts instantly to pressure changes, providing rapid pulsation dampening and shock absorption for equipment protection and stable operation.
- Superior Storage Efficiency: Usable fluid volume ranges from 25-70% of total capacity, ensuring safe performance and longer service life when operated below 75% fill.
- Complete Gas-Fluid Separation: The bladder fully isolates nitrogen from hydraulic fluid, preventing gas absorption and maintaining consistent pressure without frequent recharging.
- Simplified Maintenance Protocols: Few moving parts of these hydraulic bladder accumulators mean only periodic pre-charge checks and bladder replacement every 3-7 years, reducing labor and downtime.
- Installation Position Flexibility: These bladder type hydraulic accumulators operate effectively in any orientation, unlike piston accumulators, allowing easier system design in tighter spaces.
- Broad Hydraulic Fluid Compatibility: Standard nitrile bladders suit petroleum oils; Viton handles phosphate esters and heat; special elastomers support water glycol or biodegradable fluids.
Common Applications of Bladder Accumulators
Bladder accumulators serve essential functions across industries where hydraulic systems need energy storage, vibration dampening, or emergency backup capability. Here are some applications:
- Construction and Earthmoving Machinery: Excavators and loaders use bladder accumulators for boom suspension, energy storage, and emergency lowering, improving comfort and safety when hydraulic or electrical power is unavailable.
- Industrial Hydraulic Presses: Metal forming presses use bladder accumulators to store energy for press strokes, reducing pump capacity up to 60% while maintaining consistent forming pressure and cycle precision.
- Mobile Equipment Applications: Tractors, harvesters, and handlers integrate bladder accumulators for load compensation, shock absorption, and implement control, protecting components from terrain shocks and hydraulic pressure spikes.
- Oil, Gas, and Marine Systems: Offshore rigs and ships use high-pressure bladder accumulators for emergency actuation, steering stability, and continuous operation during motion, vibration, or power loss.
- Defense and Specialized Equipment: Military vehicles rely on bladder accumulators for recoil absorption, turret stabilization, and emergency hydraulic backup, ensuring mission-critical operation during system damage or power failure.
Key Factors to Consider When Selecting a Bladder Accumulator
Selecting the right bladder accumulator requires careful evaluation of system parameters, operating conditions, and application-specific requirements. Below are some of the key factors to consider:
- Volume and Pressure Requirements: Calculate required fluid volume using gas law equations that factor maximum system pressure, minimum acceptable pressure, and necessary discharge volume, while ensuring the accumulator’s rated working pressure exceeds peak system pressure by 25-30% for safety.
- Pre-Charge Pressure Optimization: Optimizing pre-charge pressure ensures maximum usable fluid volume while preventing complete bladder collapse. Incorrect pre-charge levels can reduce efficiency and accelerate wear, especially in applications with frequent cycling and pressure fluctuations.
- Temperature Range and Fluid Type: Match bladder material to operating environment specifications, considering both ambient temperature and heat generated during system operation.
- Mounting Configuration and Access: Evaluate available installation space, preferred orientation, and maintenance accessibility when selecting mounting options. Also, ensure service technicians can reach gas valves and replacement components during scheduled maintenance intervals.
- Quality Standards: Each hydraulic bladder accumulator is subjected to rigorous hydrostatic pressure testing at 1.5 times the working pressure, along with dimensional inspection and leak verification. Precision-machined components and certified materials ensure reliable performance for 10-15 years, meeting ASME and ISO 4413 standards.
- Customization: Custom bladder accumulators can be designed to meet specific requirements, including non-standard volumes, pressure ratings, port configurations, special materials, or unique mounting arrangements. Technical support is available for sizing calculations and application analysis.
FAQs
Q. What are the signs of bladder failure?
Ans. Signs of bladder failure include rapid pre-charge pressure loss, hydraulic fluid in the gas valve, erratic system pressure, unusual noise, and metallic particles in fluid, indicating bladder material breakdown or damage.
Q. Why use nitrogen instead of compressed air?
Ans. Nitrogen is chemically inert, preventing oxidation and combustion risks. Compressed air, containing oxygen, can cause explosions when mixed with petroleum-based fluids under pressure, making nitrogen the safer choice for accumulators.
Q. What’s the difference between bladder and piston accumulators?
Ans. Bladder accumulators offer quicker response times, flexible mounting, and complete gas-fluid separation. Piston accumulators handle larger volumes and higher pressures but require specific mounting, making selection based on response and installation needs.
Q. What is the difference between high-pressure and low-pressure bladder accumulators?
Ans. High-pressure bladder accumulators are designed for systems with demanding pressure conditions, while low-pressure models are suited for less demanding applications, ensuring optimal performance based on system pressure requirements.
Q. How does pre-charge pressure affect accumulator performance?
Ans. Pre-charge pressure is crucial for accumulator function. Incorrect pre-charge pressure, whether too high or too low, can disrupt energy storage and release, affecting system stability and overall performance.
